Site Location: Barrier free design

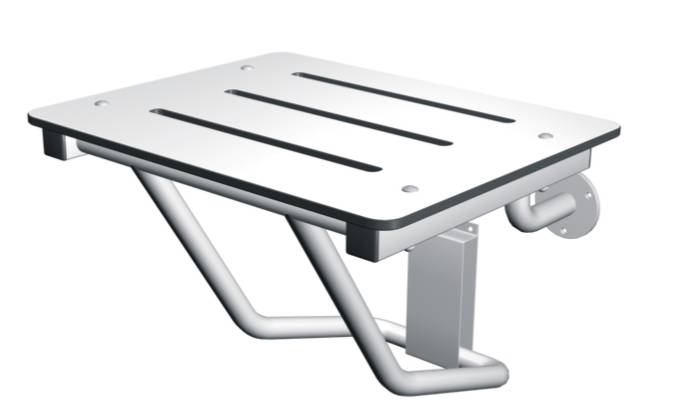

Features: Compact flip up shower seat retracts out of way when not in use.
Materials: One piece phenolic top, 5/16″ (8mm) thick. Unit frame is fabricated from 1″ O.D. 18 gauge brushed finish type 304 stainless steel. Welded construction features full 360 degree welds on all joints. Support and flanges are also stainless steel with brushed finish.
Capacity: The folding shower seat is be fabricated of adequate strength to support a load of 250 pounds (113.4 kg) and load rated to support a weight of 500 lbs at front edge when properly installed. Unit shall satisfy ADA Accessibility Guidelines when mounted properly.
Weight: 10 lbs. (4.5 kg.)
Dimensions: 29″H x 18″W x 16″D
Installation: This unit is surface mounted. Installer/construction contractor must provide concealed anchor plate or blocking as specified in construction documents or as required by local building codes prior to wall finishing. Fasten unit flanges and guide bracket to concealed anchor or blocking plate with appropriate hardware. Note that concealed mounting plates or anchors and hardware are not supplied with this product and must be specified separately. The supporting wall must be adequately reinforced to carry the rated load for the products lifetime. Ensure that mounting configuration complies with local building codes.
Maintenance: Normal preventative maintenance and cleaning will keep Frost products functioning properly and may extend normal product life. Products should be wiped down with a damp soft cloth periodically. Approved stainless steel cleaner may be used to clean scuffs or fingerprints on stainless surfaces. Do not use harsh detergents or chemical cleaners.
Safety Warning: All shower seats must be installed by qualified trades persons. Installers must consult and comply with local building codes. Mounting hardware and other systems to be determined by contractor and installer pending specific structure, design, and conditions. All installations must be fully inspected and approved by property owners and maintenance personnel prior to seat being put into use. Failure to comply to proper installation procedure will void warranty and may result in malfunctioning or injury.
